תיאור
Fast 802.11ac Wave 2, 2X2:2
MU-MIMO performance
Smart Mesh Wi-Fi support
Content and device blocking controls
Simple to use bandwidth tuning for
power-users
Easy-to-use web and mobile app for
setup and management
Secure Guest Wi-Fi with simple setup
Application classification, control and
visibility
PPPoE and static IP
: IN THE BOX
Aruba Instant On AP17 Access Point
Aruba Instant On AP17 Quick Start Guide
Cable gland
Wall mount bracket (solid surface)
M4X6 screw
M6X45 screw
Copper lug
RADIOS :
Dual Radio for simultaneous dual-band
operation
5 GHz 802.11ac 2×2 MIMO for up to
867 Mbps wireless data rate, with Multi
User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2×2 MIMO for up to
300 Mbps wireless data rate (Wi-Fi 4)
INTERFACES :
10/100/1000 BASE-T Ethernet (RJ45)
Bluetooth Low Energy (BLE) radio
LED status indicator
Reset button
PHYSICAL SPECIFICATIONS :

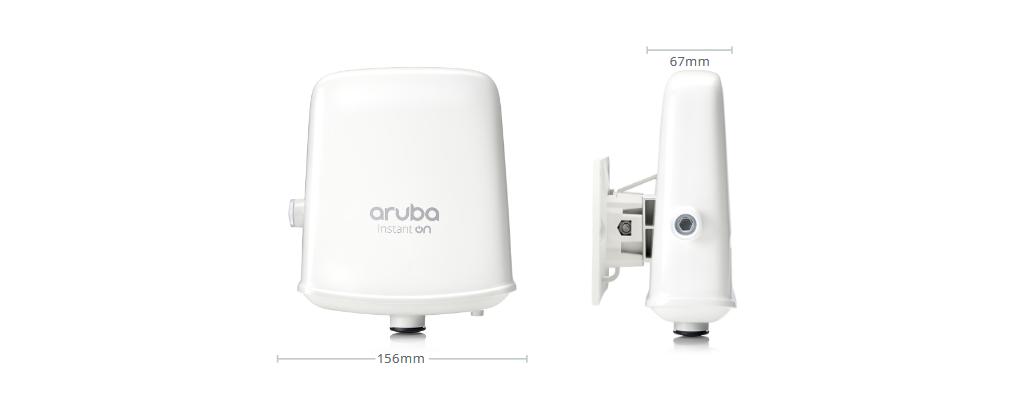

156mm x 67mm x 187mm,
excluding mount accessories
Weight: 650g
POWER :
Power over Ethernet (PoE): 802.3af power
consumption 13.5W max
ANTENNAS :
Two dual-band omni- directional
antennas (4.7 dBi gain at 2.4 GHz,
4.2 dBi gain at 5 GHz)
MOUNTING :
The access point ships with a mount
bracket, can be mounted on the wall or
a pole
COMPLIANCE AND SAFETY :
IEC 60950/62368 CB
UL2043 for air-handling space
(plenum rating)
ENVIRONMENTAL & RELIABILITY :
IP55 Enclosure
Operating Temperature: -40° C to +50° C
(-40° F to +122° F)
MTBF: 300khrs (34yrs) at +25° C
INDUSTRY CERTIFICATIONS :
WPA2, WPA3
Wi-Fi Alliance certified (WFA) 802.11ac
Wave 2 (Wi-Fi5)
MANAGEMENT OPTIONS :
Instant On mobile application
(Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com
*הנתונים לפי אתר היצרן.
