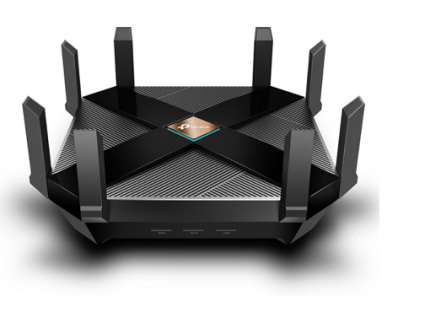

AX6000 Next-Gen Wi-Fi Router
- Blazing Speed – AX6000 Dual-Band Wi-Fi speed boosted by 1024QAM deliver astonishing wireless speed up to 5952 Mbps: 4804 Mbps (5 GHz) and 1148 Mbps (2.4 GHz)1
- Ultra Connectivity – 1 × 2.5Gbps WAN port6, 8 × Gigabit LAN ports, and 2 × USB 3.0 in Type A and Type C
- Highly Efficient – OFDMA increases average throughput by 4× in high-density scenarios, compared with an 802.11ac standard router. Downlink and uplink MU-MIMO are both supported.2 5
- Powerful Processing – 1.8 GHz Quad-Core CPU and 2 co-processors eradicate latency and deliver stable performance
- Intelligent Connection – Band Steering directs clients to less congested band and Airtime Fairness optimizes the time usage
- Security System Built In – A free lifetime subscription of TP-Link HomeCareTM provides your whole network with advanced antimalware service, delivering Antivirus, Parental Controls and QoS7
- Easy Setup – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app
Specifications :
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX6000 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses
8× Fixed High-Performance Antennas Beamforming High-Power FEM 4T4R |
| WiFi Capacity | Very High
Dual-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 8 Streams |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | 1.8 GHz 64 Bit Quad-Core CPU |
| Ethernet Ports | 1× 2.5 Gbps WAN Port 8× Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2× LAN ports |
| USB Support | 1× USB-C 3.0 Port 1× USB-A 3.0 PortSupported Partition Formats: NTFS, exFAT, HFS+, FAT32Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 4 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA WPA2 WPA3 |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeCare™ Antivirus Malicious Site Checker |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeCare™ Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeCare™ Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device
HomeCare™ QoS QoS by Application |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.3 × 10.3 × 2.4 in. (261.2 × 261.2 × 60.2 mm) |
| Package Contents | Wi-Fi Router Archer AX6000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
| WiFi Reception Sensitivity | 5 GHz： 11a 6Mbps:-97dBm,11a54MBps:-79dBm 11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm 11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm 11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm 11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm 11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm 11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm 11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm2.4 GHz: 11g 6Mbps:-97dBm,11a54MBps:-79dBm 11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm 11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm 11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm 11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm 11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm |
