תיאור

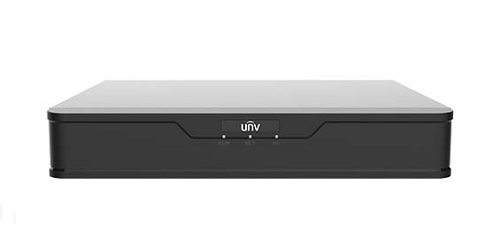

Model : XVR301-04
Analog Video Input : 4-ch, BNC
IP Video Input : 2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera Types : Support AHD input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input: 8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
Audio Input : 1-ch, RCA
Audio Compression : 1-ch, RCA
CVBS Output : 1-ch, BNC
VGA Output : 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Output : 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output : 1-ch, RCA
Synchronous Playback : 4
Live view display : HDMI/VGA: 1/4/6/8/9
Two-way Audio : HDMI/VGA: 1/4/6/8/9
Incoming Bandwidth : 40Mbps (Up to 48Mbps after all analog channel conversion)
Outgoing Bandwidth : 48Mbps
Remote Users : 128
Protocols : TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser : IE(IE10/11) for Windows,Firefox (version 52.0 and above) for Windows,Chrome(version 45 and above) for Windows,Edge(version 79 and above) for Windows
Recording Resolution : 8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF
Recording Frame Rate :
Main stream : 8MP Lite@8fps,5MP Lite @12fps,4MP Lite@15fps,1080P@15fps,720p@30fps
Sub stream : D1@8fps,D1@12fps,D1@15fps,D1@15fps,D1@30fps
Audio Sample Rate : 8KHz,16 bit per channel
Audio Bit Rate : 64Kbps per channel
Capability : Analog: 4 x 8MP Lite@8, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15,IP: 1 x 4MP@30, 2 x 1080P@30
SATA : 1 SATA interface
Capacity : Up to 8TB for each HDD(The maximum HDD capacity varies with environment temperature)
General Alarm : Motion detection
Alert Alarm : IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface : Rear panel: 2 x USB2.0
Alarm In : 12V DC
Working Environment : -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) : 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″)
Weight ( without HDD ) : ≤1.1 Kg ( 2.42lb )
Certification :
*הנתונים לפי אתר היצרן.
