Specifications :
Video & Audio
Image Sensor : 1/3″+1/2.8″CMOS Sensor
Video Resolution : Up to: 3840 x 2160 (8.0 megapixels) at 25 frames/sec
Lens : f=2.8mm@F=1.6，f=8mm@F=1.6
Video Format : H.264, H.265
Field of View :
• Horizontal: 104°-38°
• Vertical: 60°-21°
Zoom Mode : 6X hybrid zoom
Day & Night : IR-cut filter with auto-switching
Infrared Night Vision : Up to 30 meters (100ft) (LED: 2pcs/850nm)
Color Night Vision : Spotlights: 2pcs/6500K/450 lumens
Audio : Two-way audio
Power :
PoE : IEEE 802.3af, 48V active
DC Power : DC 12.0V⎓2A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet : One 10M/100Mbps RJ45
Storage :Micro SD card slot (Max. 256GB)
Audio :Built-in microphone and speaker
Pan&Tilt
Pan &Tilt Range : Pan: 355°, Tilt: 0°~90°
Pan Speed : 2.5°-90°/s (Speed can be set)
Tilt Speed : 1.5°-60°/s (Speed can be set)
Preset : 32
Auto Tracking : Support
Software Features
Frame Rate
• Mainstream: 2fps – 25fps
• Substream: 4fps – 20fps
Code Rate
• Mainstream: 4096Kbps -8192Kbps
• Substream: 128Kbps -1228Kbps
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarms
Motion detection; person detection; vehicle detection; pet detection
Recording Modes
Motion/scheduled recording (default: motion recording)
Tracking Method
Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
20 users (1 admin account & 19 user accounts);
Work with
Google Assistant
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP65

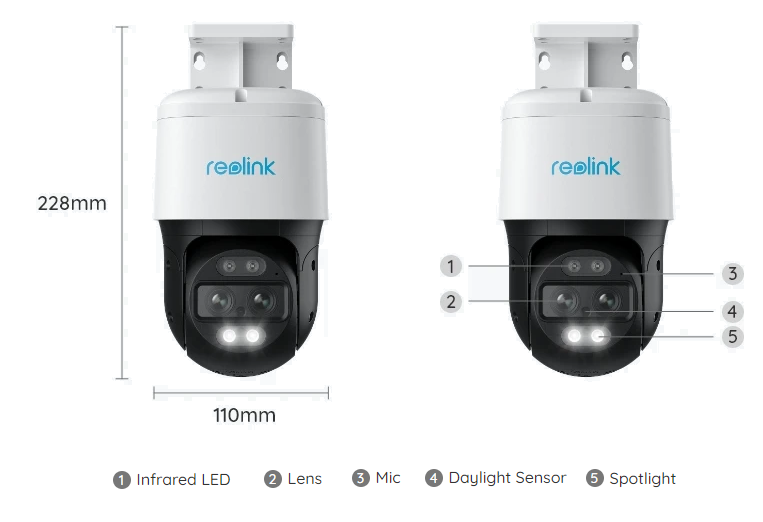

Size & Weight
Dimension
228*147*110mm
Weight
1.21KG.
*הנתונים לפי אתר היצרן.
