Redundant SIM Slots
Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or auto select by Cudy.WAN Internet, 4G Backup
Set WAN/LAN port as WAN to enable Cudy use the landline internet from WAN, and 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.External SMA Antenna connector
Combined with 4 detachable SMA Antenna interface to connect outdoor cellular antennas for better and stable signal.
4G Band Lock
4G band lock make it possible to lock the 4G working frequency to one or several bands to keep the stability of operation.TTL Settings
Support manual set TTL values to meet ISP’s requirement(such as Verizon, Visible).
Support set IPv4 TTL and IPv6 HL Values.DNS over TLS
Support DNS Encryption with CloudFlare or Google, protects your privacy, prevents eavesdropping and manipulation of DNS data via man-in-the-middle attacks.
Specifications :

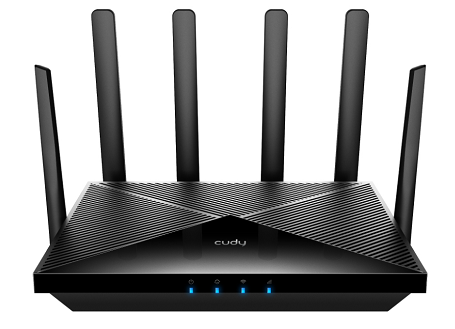

Model : LT700
Wi-Fi : 2.4GHz (802.11n/g/b, MIMO 300Mbps),5GHz (802.11ac/an/a, MIMO 867Mbps)
LTE : LTE FDD: Max 300Mbps (DL)/50Mbps (UL),LTE TDD: Max 226Mbps (DL)/48Mbps (UL)
DC-HSPA+ : 42 Mbps (DL)/11.5 Mbps (UL)
WCDMA : WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
Hardware :
CPU: Mediatek Dual Core 880MHz
4G Module: Quectel EG120K (Qualcomm)
DRAM: 256MB (2Gbit) DDR3
Flash: 16MB (128Mbit)
4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN
2 x SIM Slots (Nano)
1 x WPS Button
1 x Reset Button
2 x Fixed WiFi Antennas
4 x Detachable Cellular Antennas
LED indicators (Power, WiFi, Internet,Signal)
Software :
DHCP:Server, Client List, Address Reservation
NAT:Port Forwarding, Port Triggering, UPnP, DMZ
Firewall: Mac Filter, IP Filter, Domain Filter
DDNS: Compatible with 15 more DDNS providers
VPN: WireGuard/OpenVPN/PPTP/L2TP/Zerotier
DNS over TLS: Cloudflare/Google
Schedule: Schedule Reboot /Wi-Fi Schedule
Internet Protocol version 4 or 6 (IPv4/IPv6)
Quality of Service (QoS)
TTL configuration (Extend/Spoof)
Band Selection
Power :
AC Power Adapter: Input: 90~260V Output: 12V, 1.5A
DC input (12V-1.5A) Barrel Plug
Environmental :
Operation Temperature: 0° C to +45° C
Storage Temperature: -40° C to +70° C
Relative Humidity: 5% to 95% Non-Cond
Package Contents :
4G LTE WiFi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
*הנתונים לפי אתר היצרן.
