תיאור
Standard&Protocol : IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces : 1*10/100/1000Mbps WAN port,3*10/100/1000Mbps LAN ports

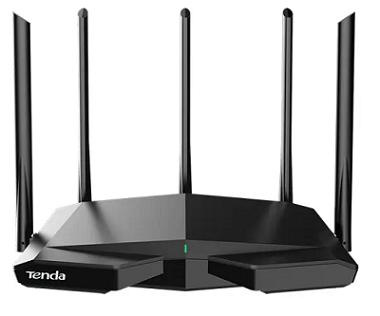

Antenna : 5*6dBi external antennas
Button : 1* WPS，1*Reset button
Power : Input：AC 100-240V~50/60Hz 0.6A,Output：DC 12V⎓2A
Dimension : (L*W*H)261*168*60mm
LED Indicator : 1*SYS
Wireless Standard : IEEE 802.11ax 6GHz,IEEE 802.11ac/a/n/ax 5GHz,IEEE 802.11b/g/n/ax 2.4GHz
Data Rate : 6GHz:Up to 2402Mbps,5GHz:Up to 2402Mbps,2.4GHz: Up to 861Mbps
Frequency : 2.4GHz & 5GHz & 6GHz
Transmission Power : CE:,<20dBm(2.4G),<23dBm(5G),<23dBm(6G)
Basic Features :
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
1024QAM High Data Rate
160MHz Bandwidth
Beamforming
MU-MIMO
OFDMA
TWT
BSS Color
Transmission Power: high, medium, low
1024QAM High Data Rate
160MHz Bandwidth
Beamforming
MU-MIMO
OFDMA
TWT
BSS Color
Wireless Security :
2.4G/5G：WPA2-PSK
WPA3-SAE/WPA2-PSK
6G：WPA3-SAE
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) Fast Encryption
WPA3-SAE/WPA2-PSK
6G：WPA3-SAE
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) Fast Encryption
Internet Connection Type :
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi
Operating Mode : AP Mode,Wireless Router Mode,Universal Repeater Mode（Client+AP,WISP）
DHCP Server : DHCP Server,DHCP Client List,DHCP Reservation
Virtual Server : Port Forwarding,DMZ Host,UPnP
Security : Client Filter,Parental Control(support black list and white list),Remote Web Management
Firewall :
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
DDNS : NO-IP, Oray.com
VPN :
PPTP Client
PPTP Server
L2TP Client
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
PPTP Server
L2TP Client
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Special Features :
Alexa
WiFi+(Mesh System)
TR069
VLAN ID
Smart diagnosis
WiFi+(Mesh System)
TR069
VLAN ID
Smart diagnosis
Others
IPv6 Features Supported
IPTV
Smart Traffic Prioritisation
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
PPPoE Username/Password Clone
Tenda App
Bandwidth Control
Guest Network
System Log
MAC Clone
Backup & Restore Configurations
Support Automatic Access Detection
Firmware Upgrade Online
Firmware Upgradeable via Browser
IPTV
Smart Traffic Prioritisation
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
PPPoE Username/Password Clone
Tenda App
Bandwidth Control
Guest Network
System Log
MAC Clone
Backup & Restore Configurations
Support Automatic Access Detection
Firmware Upgrade Online
Firmware Upgradeable via Browser
Others :
Temperature
Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃
Storage Temperature : -40C ~70℃
Humidity
Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
Default Settings
tendawifi.com or http://192.168.0.1
Certification
CE, RoHS, FCC
EIRP Power (Max)
2.400-2.4835 GHz:19.83dBm(EIRP)
5.150-5.250 GHz:22.98dBm(EIRP)
5.150-5.250 GHz:22.98dBm(EIRP)
Package Contents :
Wireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
*הנתונים לפי אתר היצרן.
