תיאור

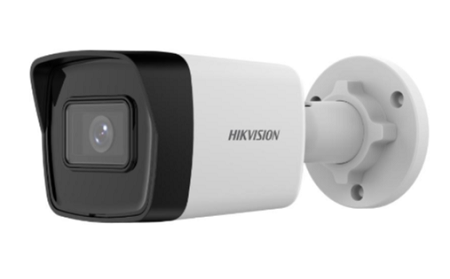

מצלמת Hikvision 5MP DS-2CD1053G0-I 2.8MM
Specification :
- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127°
- Lens MountM12
- Iris TypeFixed
- ApertureF2.0
- DORI
- DORI
2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
12.5 fps (3840 × 2160),
20 fps (2592 × 1944),
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160),
20 fps (2592 × 1944),
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Region of Interest (ROI)1 fixed region for main stream
- Network
- SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser.
- Privacy Mask4 regions of privacy mask
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventMotion detection , video tampering alarm, exception
- LinkageNotify surveillance center, trigger capture
- General
- Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- MaterialMetal & Plastic
- Dimension170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
- Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
- WeightApprox. 270 g (0.6 lb.)
- With Package WeightApprox. 489 g (1.1 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
- Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
- Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
* הנתונים נלקחים מאתר היצרן או מנתוני היבואן. הנתונים בכפוף להגדרות, שיטות ותנאי הבדיקה של היצרן ו/או היבואן לרבות רמת הקרינה, גודל/נפח, נתונים טכניים ,חברת א.א סיגמה בע”מ אינה אחרית במידה ויש טעות בנתונים שסופקו.
