Specifications :

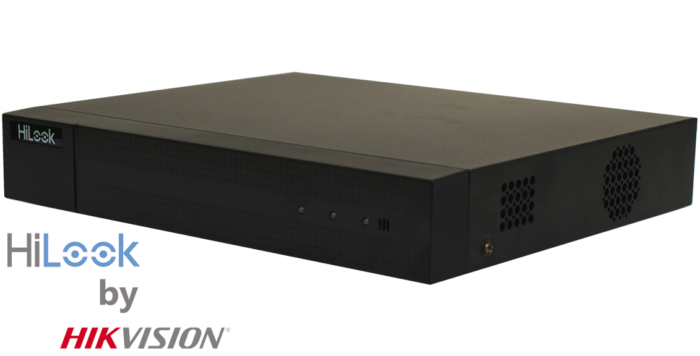

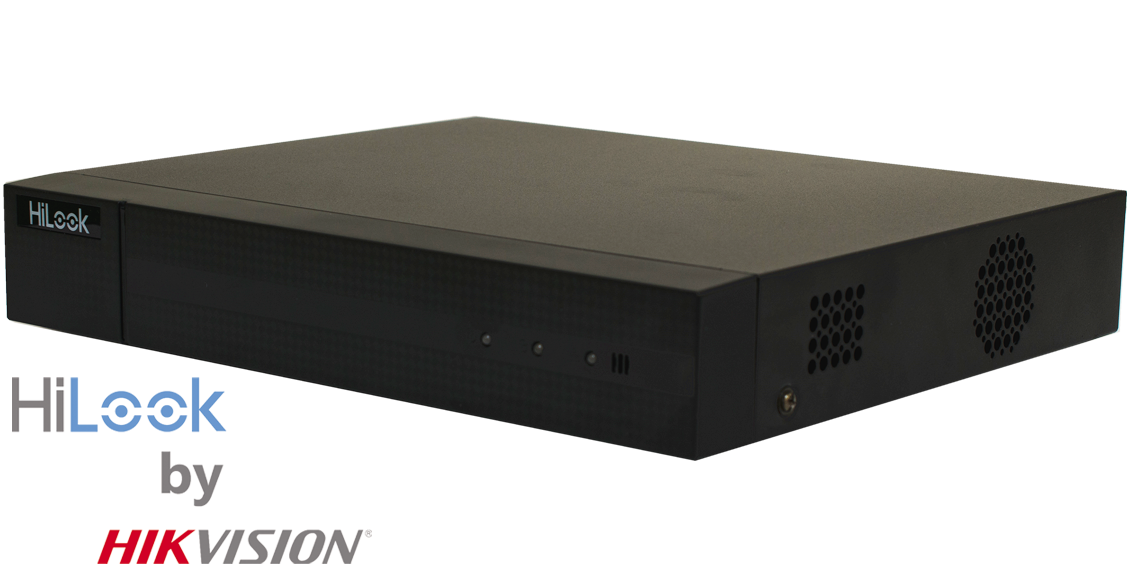

Model : DVR-216U-F2
Video compression : H.265+/H.265/H.264+/H.264
Analog video input : 16-chBNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input : 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input : 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input : PAL/NTSC
IP video input : 8-ch
Up to 6MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression : G.711u
CVBS output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output : VGA: 1-ch,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzHDMI: 1-ch,4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution : 8 MP/5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate : ain stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate : 32 Kbps to 10Mbps
Audio output : 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate : 64 Kbps
Dual stream : Support
Stream type : Video, Video & Audio
Synchronous playback : 16-ch
Remote connections : 128
Network protocols : TCP/IP, PPPoE, DHCP,Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA : 2SATA interfaces
Capacity : Up to 8 TB capacity for each disk
Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1staudio input)
Network interface : 1, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
USB interface : Front panel: 1 ×USB 2.0Rear panel: 1 ×USB 3.0
Serial interface : RS-485(half-duplex)
Power supply : 12 VDC
Consumption(without HDD) : ≤25 W
Working temperature : -10 ºC to +55 ºC(+14 ºF to+131 ºF
Working humidity : 10% to 90%
Dimensions(W × D × H) : 380× 320× 48mm (15.0 ×12.6 ×1.9 inch)
Weight(without HDD) : ≤2 kg (4.4 lb)
* הנתונים נלקחים מאתר היצרן או מנתוני היבואן. הנתונים בכפוף להגדרות, שיטות ותנאי הבדיקה של היצרן ו/או היבואן לרבות רמת הקרינה, גודל/נפח, נתונים טכניים ,חברת א.א סיגמה בע”מ אינה אחרית במידה ויש טעות בנתונים שסופקו.
