Model |

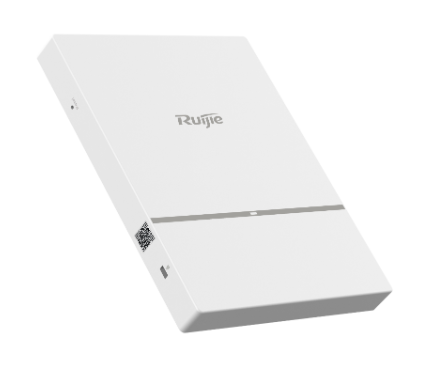

RG-AP820-L(V2) | |
|
Hardware specifications |
||
|
Radio |
Dual-radio dual-band：
Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO |
|
|
Protocol |
Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
|
Operating Bands |
802.11b/g/n/ax ：2.4G ~ 2.483GHz
802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries) |
|
|
Spatial Streams |
Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz | |
|
Max Throughput |
Maximum throughput (5G+5G mode) per AP: 2.4Gbps
Radio1：5G low band 1.2Gbps Radio2：5G high band 1.2Gbps
2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps Radio1：2.4G 0.574Gbps Radio2：5G 1.2Gbps |
|
|
Modulation |
OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) |
|
|
Receiver Sensitivity |
11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） 11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11） |
|
|
Antenna |
Integrated antenna design | |
|
Antenna Gain |
2.4G: 3dBi
5G: 3dBi |
|
|
Service Ports |
1 10/100/1000M Ethernet ports, PoE In | |
|
Management Port |
1 console port | |
|
Reset Button |
Support | |
|
Anti-theft Lock |
Support | |
|
LED Indicator |
1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access) | |
|
Transmit Power |
≤100mw（20dBm） (vary depending on different countries) |
|
|
Adjustable Power |
1dBm | |
|
Power Supply |
Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed） PoE (802.3af) – full spectrum operation |
|
|
Power Consumption |
＜12.95W | |
| Physical Specifications | ||
|
Temperature |
Operating Temperature: -10°C to 50°C | |
| Storage Temperature: -40°C to 70°C | ||
|
Humidity |
Operating Humidity: 5% to 95% (non-condensing) | |
| Storage Humidity: 5% to 95% (non-condensing) | ||
|
Installation Mode |
Ceiling/wall-mountable | |
|
Dimensions (W x D x H) |
153mm ×193mm x26mm（Height of the AP only, excluding the mount kit） | |
|
Weight |
≤0.5kg (include mount kit) | |
|
IP Rating |
IP41 | |
|
MTBF |
250,000 hours | |
|
Certifications and Compliance |
||
|
Wi-Fi Alliance |
· Wi-Fi CERTIFIED™ a, b, g, n, ac
· Wi-Fi CERTIFIED 6™ · WPA3™-Enterprise, Personal · Wi-Fi Enhanced Open™ · Wi-Fi Agile Multiband™ · WMM® |
|
|
Safety Standard |
GB4943, EN/IEC 62368-1 | |
|
EMC Standard |
GB9254, EN301 489 | |
|
Radio Standard |
SRRC, EN300 328, EN301 893 |
|
|
Software Specifications |
||
| WLAN | Maximum clients per AP | 1024 (Recommended Client: 64) |
| BSSID capacity | Up to 32 | |
| SSID hiding | Support | |
| 5G Priority (Band Steering) | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Intelligent device recognition technology | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based bandwidth control | |
| Data encryption | WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits） | |
| PSK and web authentication | Support | |
| PPSK authentication (For Employee) | Support (require wireless controller) | |
| 802.1x authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| IP |
IPv4 and IPv6 address |
Support |
|
Multicast routing |
Multicast to unicast conversion |
|
|
DHCP service |
DHCP Snooping, Option 82, Server, Client |
|
|
Management and Maintenance |
Supported wireless LAN controllers |
Ruijie WS Series Wireless Controller
Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| LLDP | LLDP, LLDP-MED, LLDP-POE | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
