: Standard&Protocol
IEEE802.3, IEEE802.3u
: Interface

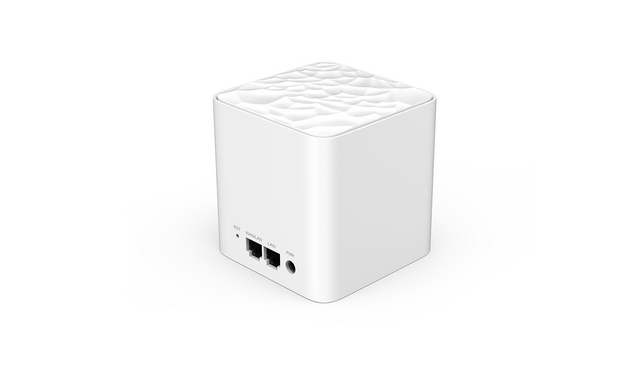

2 Fast Ethernet ports per mesh node
WAN and LAN on primary mesh node
Both act as LAN ports on additional mesh nodes
WAN and LAN on primary mesh node
Both act as LAN ports on additional mesh nodes
: Antenna
2*3dBi internal dual band antennas
: Button
1 reset button
: Power
Input:100-240V—50/60Hz , 0.3A
: Dimension
90 x 90 x 90mm
: Wireless Standards
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
IEEE 802.11b/g/n 2.4GHz
: Wireless Frequency
2.4G: 2400MHz-2483MHz
5G: 5150MHz-5250MHz or 5725MHz-5825MHz
5G: 5150MHz-5250MHz or 5725MHz-5825MHz
: Data Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
2.4GHz: Up to 300Mbps
: Frequency
Simultaneous dual band 2.4GHz & 5GHz
: Basic Features
SSID Broadcast
Beamforming
Beamforming
: Wireless Security
Mixed WPA/WPA2-PSK(default)
: Wireless roaming
Comply with IEEE802.11v/r
: Internet Connection Type
PPPoE, Dynamic IP, Static IP, Bridge Mode
: DHCP Server
DHCP Server
DHCP Client List
DHCP Client List
: Virtual Server
Port Forwarding
UPnP
UPnP
: QoS
Support Smart QoS
: Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP flood attack
Forbid TCP flood attack
Forbid ICMP flood attack
: DNS
Support manually setting DNS server
: VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP pass through
L2TP pass through
: Other
Parental Control
Guest Network
Firmware upgrade online
Reset to factory settings
Guest Network
Firmware upgrade online
Reset to factory settings
: Setup Requirements
A mobile device running Android 4.0+ or iOS 8+
: Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Storage Temperature: -40℃ ~ 70℃.
: Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Storage Humidity: 5% ~ 90%RH non-condensing.
: Certification
FCC, CE, RoHS, EAC, IC
: Package Content
(1-pack) 1 identical mesh nodes
1 power adapters
Quick install guide
1 ethernet cable
1 power adapters
Quick install guide
1 ethernet cable
